使用 TensorRT-LLM 进行推理加速

最近更新时间: 2026-06-30 15:06:00

总览

本文以 Baichuan2-13B-Chat 模型为例，展示如何将一个 LLM 使用 TensorRT-LLM 做推理加速并部署。

TensorRT-LLM 介绍

TensorRT-LLM 是一款由 NVIDIA 推出的大语言模型（LLMs）推理加速框架，为用户提供了一个易于使用的 Python API，并使用最新的优化技术将大型语言模型构建为 TensorRT 引擎文件，以便在 NVIDIA GPU 上高效地进行推理。

TensorRT-LLM 也提供了支持被 NVIDIA Triton Inference Server 集成的后端，用于将模型部署成在线推理服务，并且支持 In-Flight Batching 技术，可以显著提升推理服务的吞吐率并降低时延。

TensorRT-LLM 模型转换

创建模型转换开发机

您可以拉取 TI-ONE 提供的 TensorRT-LLM 镜像，并保存到自己的容器镜像服务个人版或企业版镜像仓库实例中：

MY_IMAGE="<你的仓库地址>"
docker pull tione-public-hub.xx.com/xxx/tritonserver:23.10-py3-trtllm-0.7.1
docker tag tione-public-hub.xx.com/xxx/tritonserver:23.10-py3-trtllm-0.7.1 ${MY_IMAGE}
docker push ${MY_IMAGE}

使用上面的自定义镜像来打开一个开发机实例，挂载已申请的 CFS 或 GooseFS 存储。请注意这里开发机实例需要使用 1 卡推理用的 GPU 用于构建 TensorRT 引擎文件。

构建 TensorRT-LLM 模型

进入开发机后，镜像在 /workspace/TensorRT-LLM-examples 目录里已内置好了模型转换的示例代码，可以按示例进行操作：

  1. 下载 Baichuan2-13B-Chat 模型
    您可以自行下载模型保存到 CFS 的路径中，这里提供一个参考方式：

    apt update && apt install git-lfs
git lfs install
GIT_LFS_SKIP_SMUDGE=1 git clone https://www.modelscope.cn/baichuan-inc/Baichuan2-13B-Chat.git
cd Baichuan2-13B-Chat
git lfs pull

  2. 按注释指引修改 build_triton_repo_baichuan2_13b.sh 文件的内容，然后执行该脚本：

    #!/bin/bash
set -ex
# 指定模型并行数
TP=1
# 【请修改】指定原始 huggingface 模型本地目录
HF_MODEL=/home/tione/notebook/triton-example/hf_model/Baichuan2-13B-Chat
# 【请修改】指定 Triton 模型包输出目录（推荐cfs中新建一个目录）
TRITON_REPO=/home/tione/notebook/triton-example/triton_model/Baichuan2-13B-Chat/trt-${TP}-gpu
# 指定 TensorRT-LLM Engine 构建脚本路径
BUILD_SCRIPT=tensorrtllm_backend/tensorrt_llm/examples/baichuan/build.py

# 创建输出目录
mkdir -p ${TRITON_REPO}
cp -r tensorrtllm_backend/all_models/inflight_batcher_llm/* ${TRITON_REPO}/
# 拷贝 Tokenizer 相关文件到输出目录
cp ${HF_MODEL}/*token* ${MODEL_PATH}/tensorrt_llm/1/

# 构建 TensorRT-LLM Engine 文件，参数详见`tensorrt_llm/examples/baichuan/README.md`
# 示例1: baichuan V2 13B 参数量模型，使用 FP16，开启 in-flight batching 支持
#python3 $BUILD_SCRIPT --model_version v2_13b \
#                --model_dir ${HF_MODEL} \
#                --output_dir ${TRITON_REPO}/tensorrt_llm/1/ \
#               --world_size ${TP} \
#                --max_batch_size 32 \
#                --dtype float16 \
#                --use_gemm_plugin float16 \
#                --use_gpt_attention_plugin float16 \
#                --remove_input_padding \
#                --paged_kv_cache

# 示例2: baichuan V2 13B 参数量模型，使用 INT8 weight-only 量化，开启 in-flight batching 支持
python3 $BUILD_SCRIPT --model_version v2_13b \
                --model_dir ${HF_MODEL} \
                --output_dir ${TRITON_REPO}/tensorrt_llm/1/ \
                --world_size ${TP} \
                --max_batch_size 32 \
                --dtype float16 \
                --use_weight_only \
                --use_gemm_plugin float16 \
                --use_gpt_attention_plugin float16 \
                --remove_input_padding \
                --paged_kv_cache


# Triton config.pbtxt 配置文件修改
# options.txt 文件可以按需修改，一般推荐使用默认值
OPTIONS=options.txt
python3 tensorrtllm_backend/tools/fill_template.py -i ${TRITON_REPO}/preprocessing/config.pbtxt ${OPTIONS}
python3 tensorrtllm_backend/tools/fill_template.py -i ${TRITON_REPO}/postprocessing/config.pbtxt ${OPTIONS}
python3 tensorrtllm_backend/tools/fill_template.py -i ${TRITON_REPO}/tensorrt_llm_bls/config.pbtxt ${OPTIONS}
python3 tensorrtllm_backend/tools/fill_template.py -i ${TRITON_REPO}/ensemble/config.pbtxt ${OPTIONS}
python3 tensorrtllm_backend/tools/fill_template.py -i ${TRITON_REPO}/tensorrt_llm/config.pbtxt ${OPTIONS}

# 建立 /data/model 的软链（TIONE在线服务中，模型默认挂载到此处）
mkdir -p /data
ln -s ${TRITON_REPO} /data/model

# 本地启动 Triton 推理服务调试
# launch_triton_server

    转换完的模型目录结构如下

    # tree
.
├── ensemble
│   ├── 1
│   └── config.pbtxt
├── postprocessing
│   ├── 1
│   │   └── model.py
│   └── config.pbtxt
├── preprocessing
│   ├── 1
│   │   └── model.py
│   └── config.pbtxt
├── tensorrt_llm
│   ├── 1
│   │   ├── baichuan_float16_tp1_rank0.engine
│   │   ├── config.json
│   │   ├── model.cache
│   │   ├── special_tokens_map.json
│   │   ├── tokenization_baichuan.py
│   │   ├── tokenizer_config.json
│   │   └── tokenizer.model
│   └── config.pbtxt
└── tensorrt_llm_bls
    ├── 1
    │   └── model.py
    └── config.pbtxt

    您可以在开发机中直接执行 launch_triton_server 命令启动 Triton Inference Server，并参考 api_test.sh 进行本地调用，若您希望发布正式的推理服务并允许公网或 VPC 内调用，请参考下面的章节。

Triton Inference Server 推理服务部署

创建在线服务

创建服务时，模型来源选择 CFS 或 GooseFS，选择模型选择 CFS 或 GooseFS 上转换好的 Triton 模型包路径。
运行环境选择刚才的自定义镜像或内置镜像内置 / TRION(1.0.0) / 23.10-py3-trtllm-0.7.1。
算力资源根据实际拥有的资源情况选择，CPU 不低于 8 核，内存不小于 40 G，GPU 推荐使用 A100 或 A800。

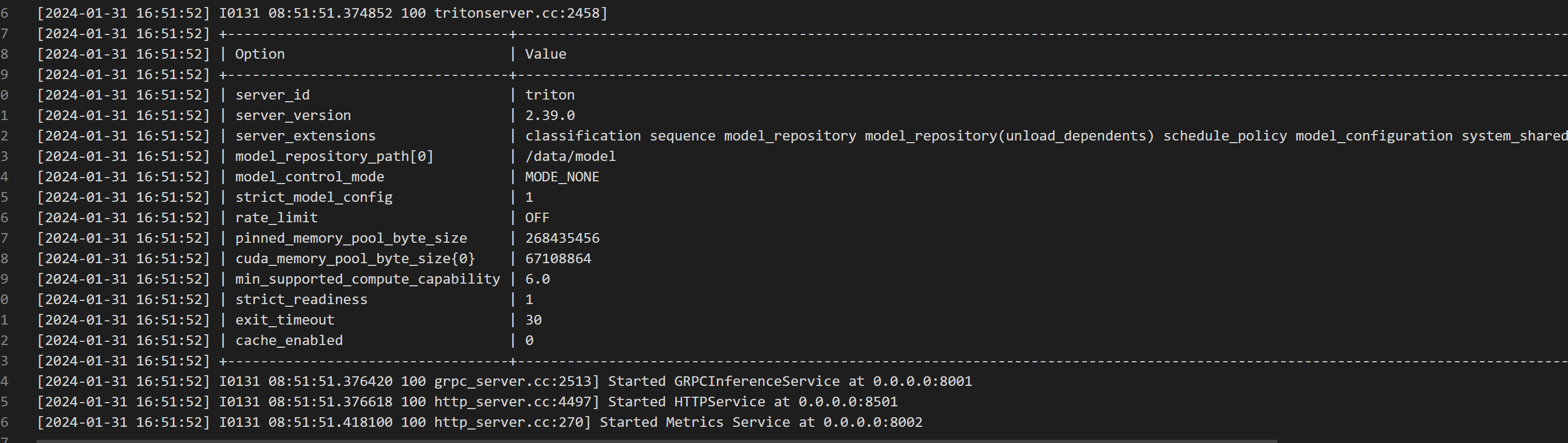

看到类似如下日志，说明服务启动完成：

接口调用

文本生成接口API可以参考 Triton 的文档，示例如下：

# 公网访问地址可从在线服务实例网页前端的【服务调用】Tab 页获取
SERVER_URL=https://service-********.sh.xxxx.com:443/tione

# 非流式调用
curl -X POST ${SERVER_URL}/v2/models/tensorrt_llm_bls/generate -d '{"text_input": "<reserved_106>你是谁？<reserved_107>", "max_tokens": 64}'

# 流式调用
curl -X POST ${SERVER_URL}/v2/models/tensorrt_llm_bls/generate_stream -d '{"text_input": "<reserved_106>你是谁？<reserved_107>", "max_tokens": 64, "stream": true}'

非流式返回结果：

{"cum_log_probs":0.0,"model_name":"tensorrt_llm_bls","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"text_output":"我是百川大模型，是由百川智能的工程师们创造的大语言模型，我可以和人类进行自然交流、解答问题、协助创作，帮助大众轻松、普惠的获得世界知识和专业服务。如果你有任何问题，可以随时向我提问"}

流式返回结果：

data: {"cum_log_probs":0.0,"model_name":"tensorrt_llm_bls","model_version":"1","output_log_probs":0.0,"text_output":"我是"}
data: {"cum_log_probs":0.0,"model_name":"tensorrt_llm_bls","model_version":"1","output_log_probs":[0.0,0.0],"text_output":"我是百川"}
data: {"cum_log_probs":0.0,"model_name":"tensorrt_llm_bls","model_version":"1","output_log_probs":[0.0,0.0,0.0],"text_output":"我是百川大"}
data: {"cum_log_probs":0.0,"model_name":"tensorrt_llm_bls","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0],"text_output":"我是百川大模型"}
data: {"cum_log_probs":0.0,"model_name":"tensorrt_llm_bls","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0],"text_output":"我是百川大模型，"}

... 省略多行 ...

data: {"cum_log_probs":0.0,"model_name":"tensorrt_llm_bls","model_version":"1","output_log_probs":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"text_output":"我是百川大模型，是由百川智能的工程师们创造的大语言模型，我可以和人类进行自然交流、解答问题、协助创作，帮助大众轻松、普惠的获得世界知识和专业服务。如果你有任何问题，可以随时向我提问"}
